FULLY AUTOMATIC LABORATORY TEST SIEVE CALIBRATION
APPLICATION USING DIGITAL IMAGING TECHNOLOGY
EASY OPERATION USING Armadillo SOFTWARE
ASTM E-11 , ASTM E161 ISO 3310 1&2 DIN
(BASED ON INSPECTION GRADE COMPLIANCE
8 INCH DIAMETER)
COMPLETE REPORT GENERATION CAPABILITIES
REMOTE DIAGNOSTICS AND TECHNICAL SUPPORT AUTOMATIC SIEVE CALIBRATOR WITH AI
VERIFY COMPLIANCE IN HOUSE TO ASTM, ISO, AND DIN SPECIFICATIONS

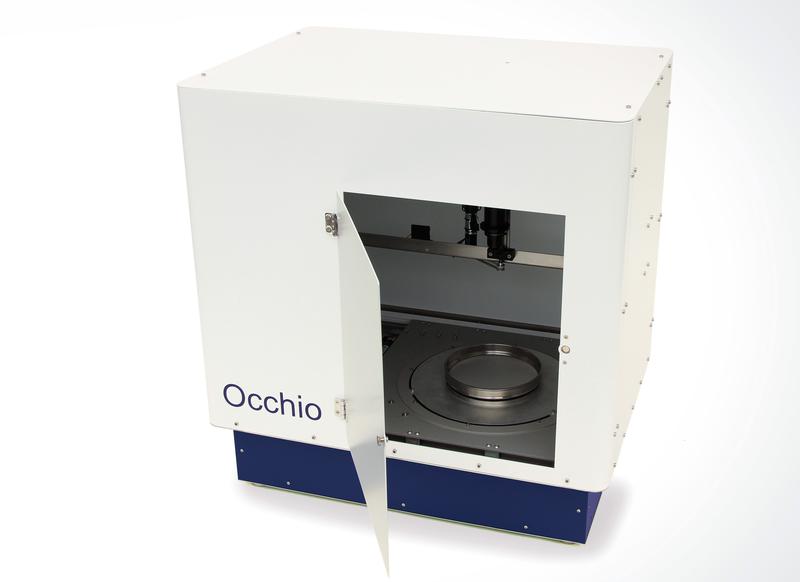

OCCHIO SIEVECAL

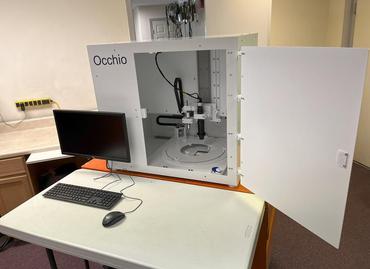

NEWLY REDESIGNED ! FULLY
AUTOMATIC SIEVE CALIBRATOR WITH MOTORIZED TURNTABLE
Although sieve calibration beads are highly usable
for calibrating laboratory test sieves,
when compared to digital imaging, the latter
provides a much higher degree of accuracy.
This actual microscopic photograph of .125 mm sieve soda lime glass calibration beads, shows a range of sizes, as well as a number of asperities.
POPULAR METHODS OF SIEVE VERIFICATION
SIEVE CALIBRATION
STANDARDS
Simply select the sieve aperture size from the SOP drop down menu.
The sieve diameter, compliance criteria, and focus settings,
are stored in memory, enabling the operator to conduct a test with the simple click of a mouse.
All wire mesh sieves with apertures between 38 microns, and
12.5 mm fall in to one of the 5 SOP's.

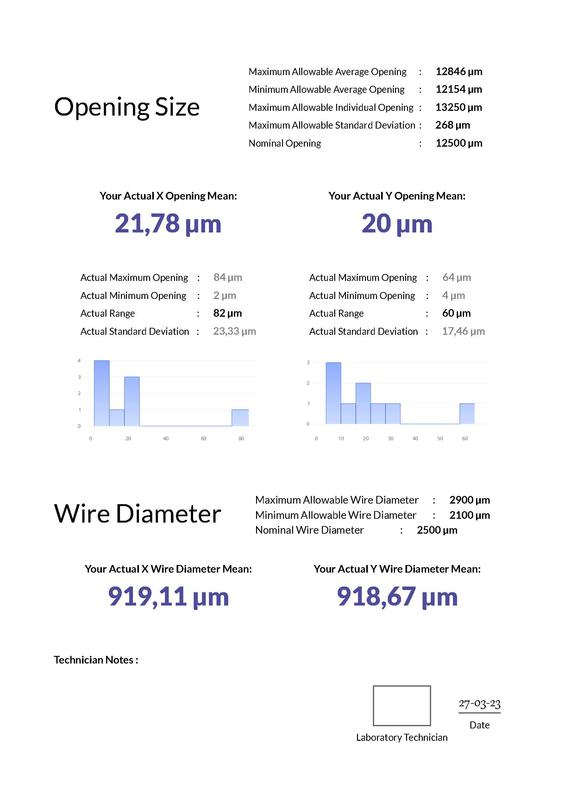

PASS FAIL CRITERIA FULL REPORT

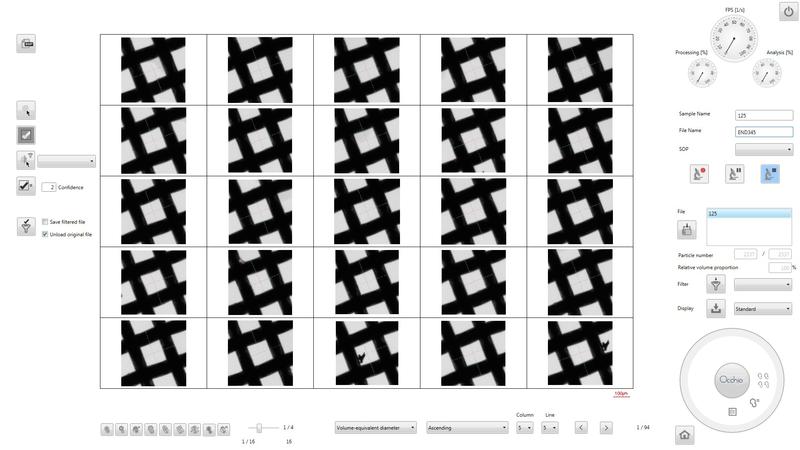

APERTURE IMAGES ARE AUTOMATICALLY STORED.
CLOGGED APERTURES
AUTOMATICALLY DELETED FROM THE REPORT (AI POWERED)
NEW AI POWERED
ARMADILLO SOFTWARE
EASY TO USE
MINIMAL OPERATOR TRAINING
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
To verify the optical calibration of the zoom lens, an NIST Traceable Reticle is employed. Each aperture size has an SOP, that lists the pixel value for each applicable zoom lens setting.
The SieveCal is calibrated to a master stack of calibration grade sieves, maintained at Occhio in Belgium, or to the customers own master stack, if requested.

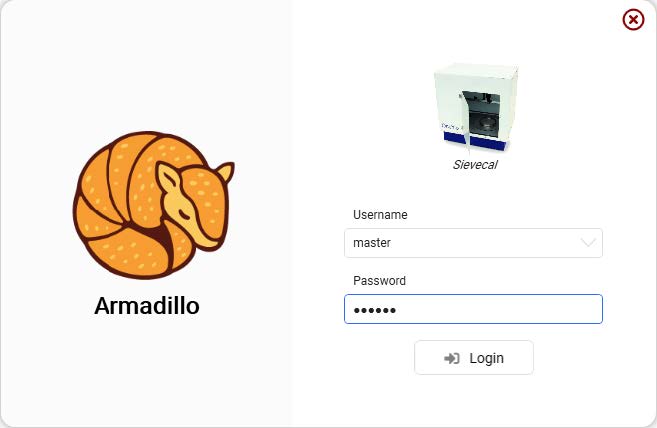

Armadillo AI Powered Software
Developed by the engineers at Occhio
HIGH DEFINITION TELECENTRIC ZOOM LENS
VIDEO
PROGRAMMABLE XY PLATFORM WITH ADVANCED OPTICS
MEASURES ANYTHING 2 DIMENSIONAL
The Sievecal is a sensitive instrument which has been designed and built for precision measurements.
Independently certified to meet ISO 13322-1 standards.
Software adheres to ISO 9276-6 norms.
