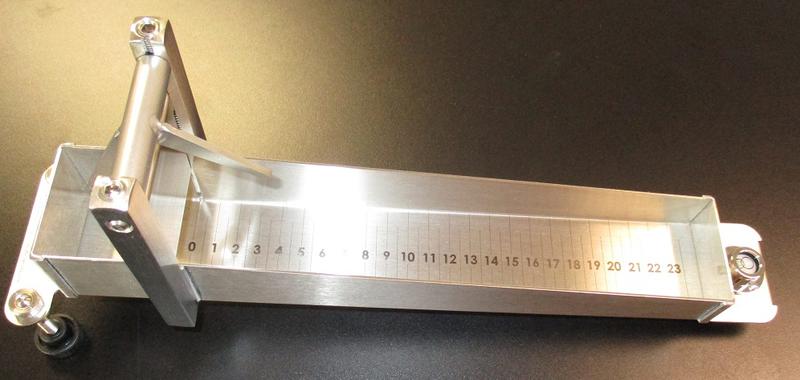

QAQC LAB ORIGINAL BOSTWICK CONSISTOMETER
The original Bostwick Consistometer, IN STOCK
FEATURES
DURABLE STAINLESS STEEL CONSTRUCTION
Resists corrosion
Suitable for laboratory and plant use
CONVENIENT SIZE
Uses little bench space
Requires only 75 mL of sample
SPRING LOADED GATE
Instantaneous gate release
Prevents premature flowing of sample
TWO LEVELING SCREWS & SPIRIT LEVEL
Assures repeatiblitiy
Precise positioning of flow angle
ENGRAVED GRADUATIONS OF 0.5 cm DIVISIONS
Assures accurate results
Wear and smear resisatant
The original Bostwick Consistometer is the preferred choice for measuring consistency, flow rate and viscosity in a variety of products.
Use the Bostwick Consistometer on any viscous material such as sauces, salad dressings, paints, chemicals or cosmetics, to measure the distance a material flows in a given time interval.
The Bostwick complies to Mill Spec R-81294D and ASTM F1080-93 and is made of stainless steel construction.
APPLICATIONS
Food Processing- Tomato Sauces, Soups, Baby Foods
Paint Manufacturing- Epoxy Removers, Adhesives, Coatings
Cosmetics Formulations- Shampoos, Lotions, Flow Base Creams
Chemical production- Viscous Liquids, Slurries, Emulsions
NEXT DAY DELIVERY AVAILABLE!
QAQC LAB ORIGINAL BOSTWICK CONSISTOMETER
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
INFORMATION@QCLABEQUIPMENT.COM

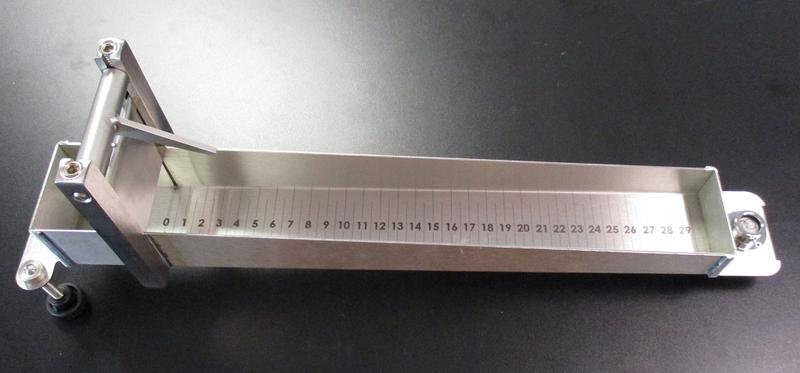

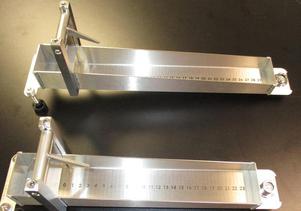

NOW AVAILABLE IN EXTENDED LENGTH
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
EQUIPMENT FOR QUALITY CONTROL AND R&D
Telephone (804) 318-3686
Toll Free US (866) 244 1578
Fax (703) 991-7133
Hours 8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
DELIVERIES WORLDWIDE
PERFORMANCE GUARANTEE
ORIGINAL BOSTWICK CONSISTOMETER
For the determination of the flow of a standard volume of a semisolid or thick liquid under its own weight.
Reproducibility- within .5 cm with same operator and same sample.
NOTE: Viscous materials may vary in consistency, depending on the age of the sample, the temperature of the sample, and shear history.
SIMPLE OPERATION
Fill the reservoir with about 100 ml,of a 250 ml prepared sample, and level off the top with a straight edge.
The temperature of the device, and sample, should be the same.
Press down on the trigger to open the gate at the beginning of the time cycle.

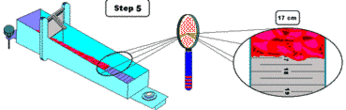

At the end of the selected time period, (5 MIN ASTM 1080) determine how far the material has flowed along the trough.
Take the maximum reading at the center of the trough, and the minimum reading at the edge of the trough, and average the values.
The average value is then compared against a previously determined standard.
