BROCHURE BOTTLE SAMPLER
qclabequipment
QAQC LAB bottle sampler
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE

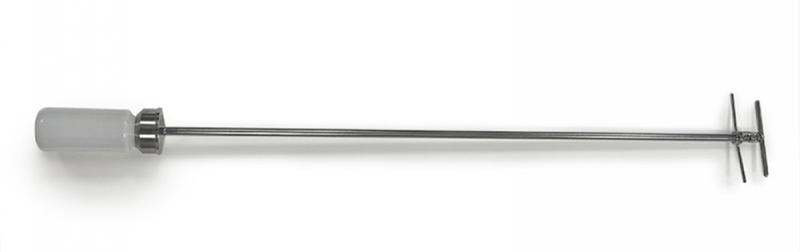

BOTTLE SAMPLER Takes Samples Straight into the bottle
Stock No.               Length                      Bottle Cover               Bottle Size

675 5031S1000      1000 mm                    No                                500 ml

675 5031C1000      1000 mm                    Yes                               500 ml

675 5031S1500      1500 mm                    No                                500 ml

675 5031C1500      1500 mm                    Yes                               500 ml

Accessories

Stock No.

675 8020N1100               Narrow cleaning brush - 1100mm

675 8020N1600               Narrow cleaning brush - 1600mm

675 5031B500                 Spare 500 ml Bottle
bottle sampler schematic
bottle sampler open
QAQC LAB bottle sampler
bottle sampler handle

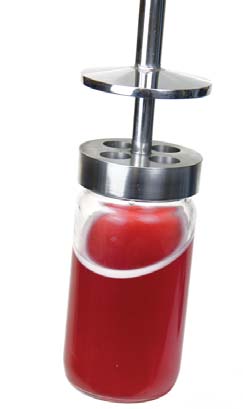

bottle sampler with liquid

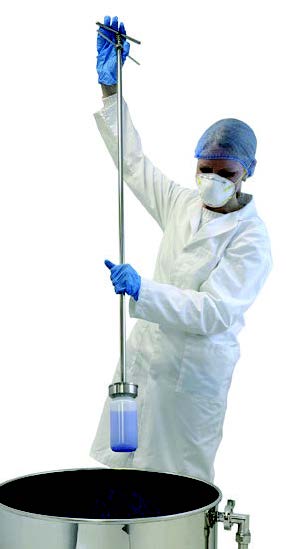

The Bottle Sampler takes samples straight into the bottle.
The spring loaded mechanism means that liquid only flows in
when the handle is squeezed allowing samples to be taken
from set locations.

• Low to medium viscosity liquids.
• Single Point liquid sampling
• Sampler body - 316 stainless steel, Bottle - glass

Ideal for taking quick samples direct into the bottle. The sampler is available with a cover
that goes over the bottle to stop the bottle from getting wet.
Sampler with protective
cover that also helps
to keep the bottle dry
during sampling
Bottle Sampler with
Bottle Cover

Bottle Sampler without
protective Bottle Cover
OPERATION
bottle sampler
SPECIFICATIONS
