The industry standard in test sieve shakers, the original W.S. Tyler Ro-Tap® has a unique two-dimensional operation: a horizontal, circular motion, and a vertical tapping motion.
This special action allows material particles to stratify and “seek” critical openings in the test media. This unit provides the
most accurate and consistent particle analysis testing and requires minimal maintenance.
The RX-29 is designed for testing with 8-inch diameter test
sieves. The RX-30 model is designed for testing with 12 in. diameter test sieves.
Each unit is test run and serialized prior to shipment and features a 99-minute digital timer/clock with a tolerance of .1
seconds.
SPECIFICATIONS:
Oscillations per Minute 278 ± 10
Oscillations Displacement 1-1/8 in. x 7/16 in.
Taps per Minute 150 ± 10
Dimensions 28 in. wide x 21 in. deep x 25 in. high
(71 cm x 54 cm x 64 cm)
Weight 180 lbs. (82 kg)
Testing Applications RX-29: 2 in. through US #635 mesh (20 μm)
RX-30: 4 in. through US #500 mesh (25 μm)
RO-TAP® RX-94 MODEL
The RX-94 Test Sieve Shaker utilizes the same traditional design as the RX-29 model. In addition, the unit features a
cavity that allows for two “stacks” of 8 in. or 200 mm diameter test sieves.
This allows for twice the processing capacity in nominally the same time required to complete one test. The RX-94 model is designed for use with 8 in. or 200 mm diameter test sieves only and feature a newly designed easy lock
clamping system.
Each unit is test run and serialized prior to shipment and
features a 99-minute digital timer with a tolerance of .1 seconds.
SPECIFICATIONS
Oscillations per Minute 278 ± 10
Oscillations Displacement 1 – 1/8 in. x 7/16 in.
Taps Per Minute 150 ± 10
Dimensions:
30 in. wide x 27 deep x 26 in. high
(75 cm x 68 cm x 56 cm)
Weight 220 lbs. (110 kg)
Testing Applications 2 in. through US #635 mesh
(20 μm)

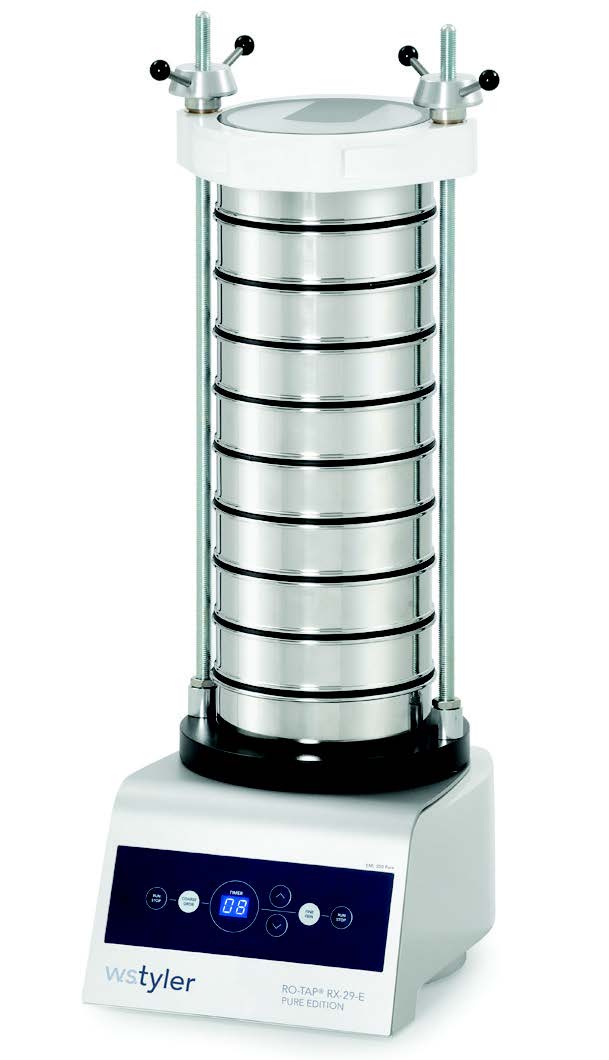

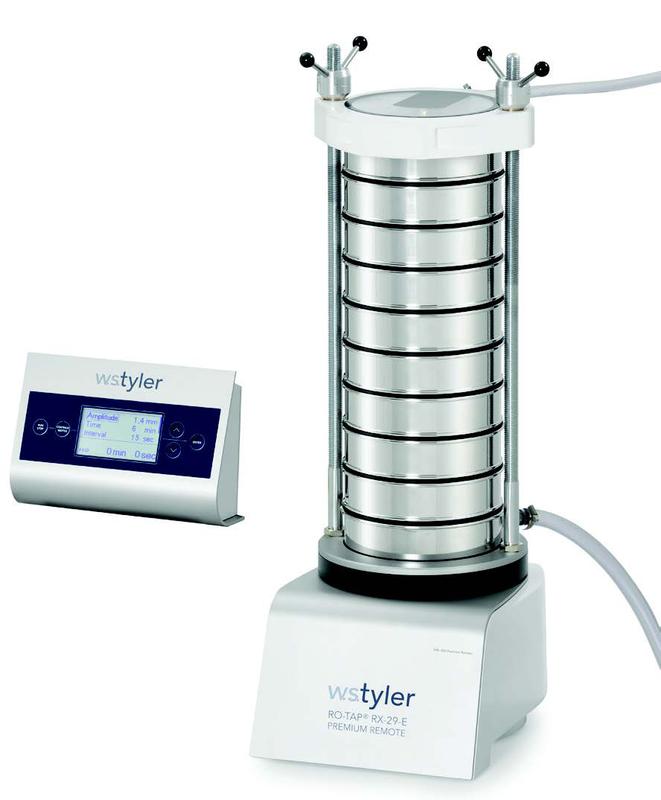

The newly designed Rotap E Test sieve shaker stands out with its simple and quick operation. Two specific regulated
