CORE SAMPLERS FOR ICE , WAX , AND ICE CREAM

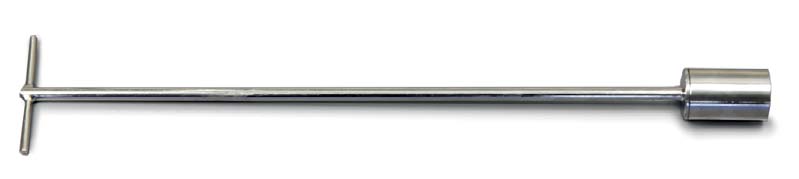

• Suitable for sampling ice, wax and other similar materials
• Single point sampler
• Made from 316 stainless steel
Operation:
1. Rotate the handle as the sampler is pushed into the product.
The scroll will cut into the product and the sample will be
deposited in the sample collecting chamber.
2. Removing the cylinder allows the sample to be accessed.
Part No. Length Sample Volume Diameter of Sampling head
Manufactured from chemically resistant 316 stainless steel.

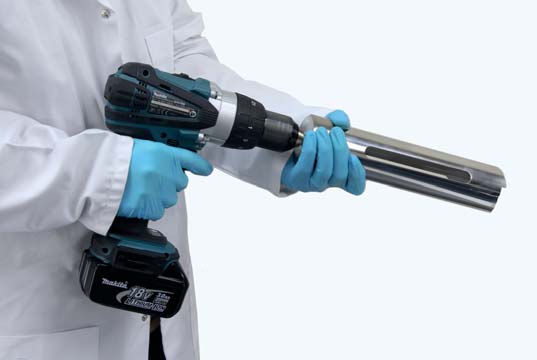

• Fits all standard electric drills (drill not supplied)
• Takes samples in seconds
• Wide diameter for large cross sectional sample
• Available from stock
• Supplied with ejection rod
Part No. Description Length Diameter Material
675 6010A240 Powered Ice sampler with discharge rod 240 mm 50 mm 316 Stainless Steel
• Suitable for sampling ice, wax and other similar materials
• Single point sampler
• Made from 316 stainless steel
Operation:
1. Rotate the handle as the sampler is pushed into the product.
The scroll will cut into the product and the sample will be
deposited in the sample collecting chamber.
2. Removing the cylinder allows the sample to be accessed.
• Suitable for ice, wax and other similar materials
• Made from 316 stainless steel
Part No. Description Length OD

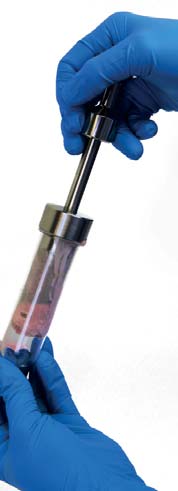

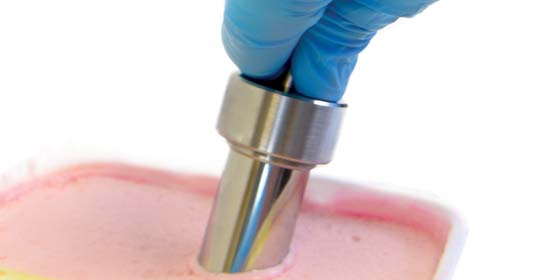

The Ice Cream Sampler is ideal for sampling products like ice cream and soft waxes.
All stainless steel construction and is designed to be easily dismantled for cleaning.
Part No. Diameter Sample Volume Material
675 6006A100 25 mm 30 ml 316 stainless steel with clear polystyrene test tube
675 6006A101 Test Tube made from clear polystyrene (PS)
675 8020J600 Cleaning Brush

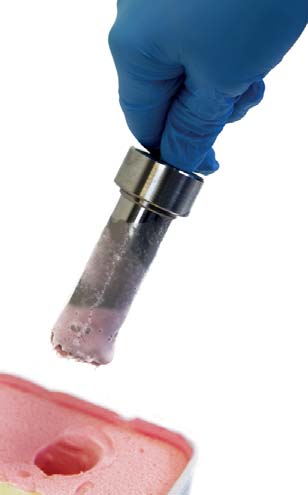

The Ice Cream Sampler has an all stainless steel construction and
is designed to be easily dismantled for cleaning. The sampler comes
complete with a test tube for putting the sample into.
