QAQC POCKET SAMPLER MULTI ZONE FOR POWDERS

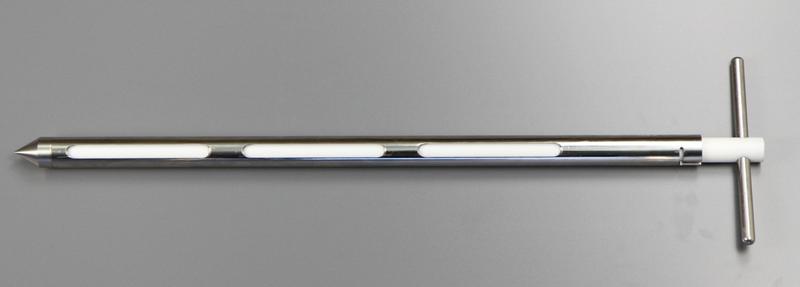

Pocket Sampler for discrete powder samples
The highly popular Pocket Sampler is suitable for taking discrete samples from free flowing powders and granules. The sampler is available in a range of sizes and designs.
TYPE: Multilevel (discrete / zone samples)
MATERIAL: 316 Stainless steel outer with a
PTFE Core or all 316 stainless steel construction

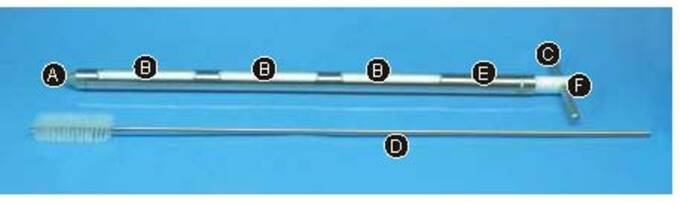

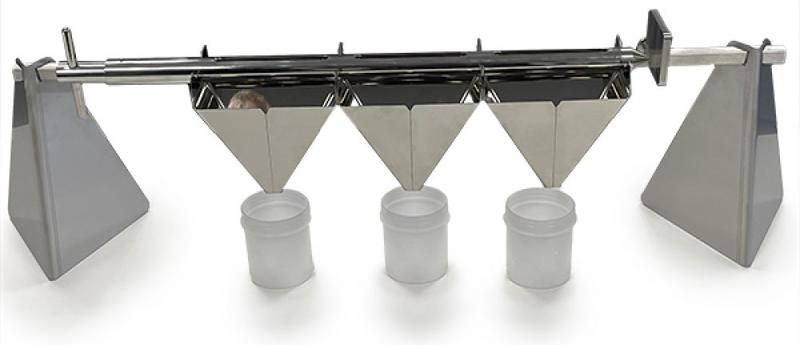

(A) Removable Tip - allows thorough cleaning Or Optional Emptying Rack allows samples to be deposited directly
QAQC LAB POCKET SAMPLER
DISCRETE MULTI ZONE FOR POWDERS AND GRANULARS
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
INFORMATION@QCLABEQUIPMENT.COM

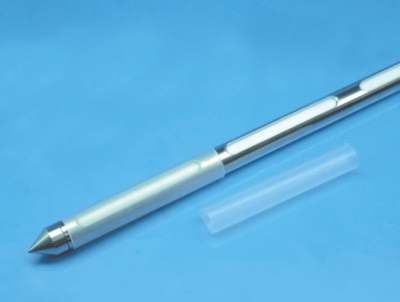

SEALING SLEEVES ENABLE ONE POCKET TO BE EMPTIED AT A TIME. SIMPLY CLIP ON TO COVER.
EASY TO REMOVE

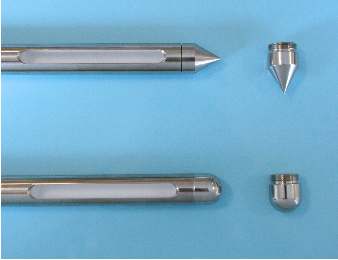

REMOVABLE POINTED TIP STANDARD
ROUNDED TIP AVAILABLE
REF# DESCRIPTION
675 8005A01 Sealing Sleeve Set - Covers pockets - set of 3 sleeves (25 mm diameter)
675 8005A02 Sealing Sleeve Set - Covers pockets - set of 3 sleeves (40 mm diameter)
For samplers over 1m please order 2 racks. They can be put side by side.
LUG-1 Earthing connection point.
Tip2 Round tip. (Sampler supplied with pointed tip). For 25 mm diameter samplers only
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.

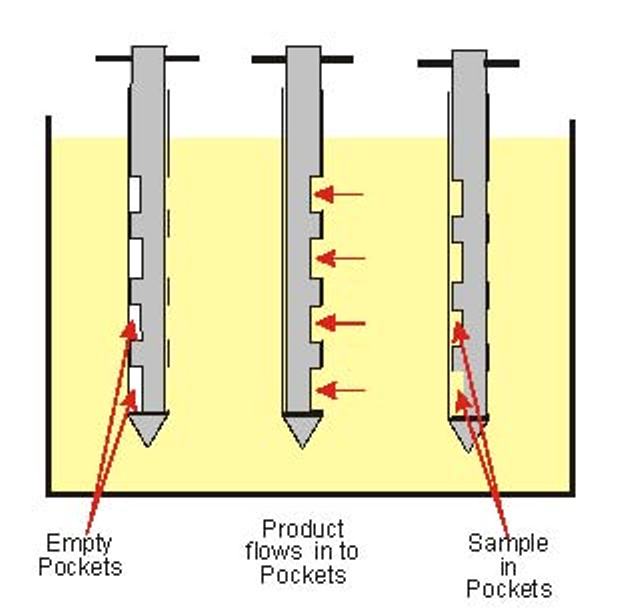

OPERATION: 1. Insert the sampler into the product .
2. At the required depth rotate handle
to expose the collecting pockets.
The product will flow in to the
collecting pockets
3. Rotate handle to close pockets
and remove sampler.
EQUIPMENT FOR QUALITY CONTROL AND R&D
Telephone (804) 318-3686
Toll Free US (866) 244 1578
Fax (703) 991-7133
Hours 8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
DELIVERIES WORLDWIDE
PERFORMANCE GUARANTEE
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
REF# OUTER TUBE INNER ROD POCKETS
SAMPLER BODIES 40 mm DIAMETER
LENGTH
600 mm
900 mm
1500 mm
REF# OUTER TUBE INNER ROD POCKETS
SAMPLER BODIES 20 mm DIAMETER
VOLUME ea
15 ml
20 ml
20 ml
10 ml
15 ml
20 ml
20 ml
LENGTH
600 mm
900 mm
1500 mm
300 mm
600 mm
900 mm
1500 mm
