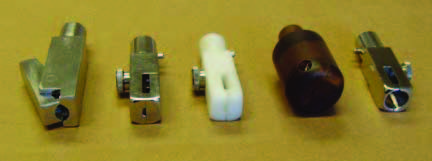

1) Made of 316 stainless steel and electro-polished for microbiological
sampling using agar plates. Steam, dry heat, ETO, and gamma
radiation sterilizable.
2) Made of 316 stainless steel and electropolished for swab sampling
using swabs with or without handles, filter paper, or wipes.
Especially suitable for Texwipe Alpha Swabs TX761 and TX714A
(available from VWR Scientific). Steam, dry heat, ETO and gamma
radiation sterilizable.
3) Made of FDA approved white plastic, for same application as
described above. May be sanitized with alcohol, but not
sterilizable. Designed to avoid scratching the surface being swabbed.
4). Made of an FDA approved amber colored special plastic, for
microbiological sampling using swabs from microbiological tubes
(Swubes). Steam, dry heat, ETO, and gamma radiation sterilizable.
5) Made of 316 stainless steel, for microbiological sampling using
Culture Swab from DIFCO Laboratories.
An optional mirror attachment with sizes
of plastic mirrors (3” x 3” and 6” x 6”) and a
flash light attachment are also available.

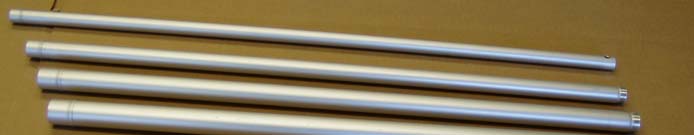

Optional Extension Poles to add
15 additional feet.
STORE SEARCH
TRAINING VIDEO
CLEANING VALIDATION COUPONS
WHAT ARE THEY FOR?
A cleaning validation coupon is used in the laboratory to validate a proposed swabbing method.
Example: if your proposed method for swabbing involves a solvent, say methanol, how do you know if that solvent and the swabbing technique you are going to use will actually recover the residue from the surface?
In order to determine the efficiency of your swabbing method in recovering the residue, a cleaning validation coupon, matching the material of construction and the finish of the subject surface, is spiked with known amount of a solution of the residue of known concentration, dried, and swabbed with your proposed swabbing method and the swab analyzed for the residue. If the recovery of the residue is within acceptable limits, then you can proceed to do the swabbing on the subject surface.
COUPON TYPES
QAQC LAB offers coupons made of several different materials with different finishes, such as 316 stainless steel, 304 stainless steel, aluminum, brass, bronze, a variety of plastics and rubbers, etc. Standard dimensions of the coupons are 50 mm x 50 mm, and 100 mm x 100 mm.
