The U-D Sleeve Sampler is extensively used in the pharmaceutical industry
Unit Dose Sleeve Sampler Kit (Includes tips)
Includes: 1 x T-bar handle - 600mm
4 x handle extension rods - 600mm
1 x Type 1 sample chamber (for Tips 0.1 to 1.2ml)
1 x Type 2 sample chamber (for Tips 1.3 to 2.5ml)
10 x Sampling tips (0.1ml to 2.5ml - see below)
1 x High Quality Sampler Case - lockable
EQUIPMENT FOR QUALITY CONTROL AND R&D
Telephone (804) 318-3686
Toll Free US (866) 244 1578
Fax (703) 991-7133
Hours 8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
DELIVERIES WORLDWIDE
PERFORMANCE GUARANTEE
NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS!
CUSTOM ORDERS AVAILABLE!
It is ideal for Unit Dose Sampling.
• Single Point Unit Dose Sampler
• 316 stainless steel
• Use extension rods to increase the length of the sampler

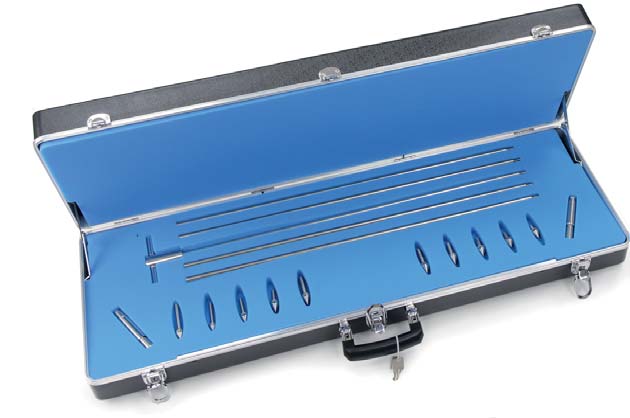

High Quality Sampler Case - lockable - with cut outs for sampler components
Operation
1. Insert the sampler into the product.
2. At the required depth pull up the sampler
slightly (this upwards action will force the
sleeve down the sample chamber and expose
the ports) the product can then fall into the sample chamber.
3. As the sampler is removed the excess powder
will fall out of the overfl ow leaving an accurate
volume of powder in the sample chamber.
U-D Sleeve Sampler Set (1500S-01) - The set includes a range of 10
interchangeable tips to allow different sample volumes to be taken.
Extension rods allow samples to be taken from a depth of up to 3 m.
Tips are available in all sizes from 0.1ml to 2.5 ml in 0.1 ml increments.
(0.1 ml, 0.2 ml, 0.3 ml, 0.4 ml etc.)
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
The U-D Sleeve Sampler is extensively used in the pharmaceutical industry for accurate, small volume sampling of free flowing powders and granules.
