The Unit Dose Sample Thief is a highly versatile sampler for taking multiple samples at multiple heights within the product.
The operator can quickly change the sample volume and the number of samples taken by simply changing the inner rod.
UNIT DOSE SAMPLETHIEF
The Unit Dose Sample Thief is a highly versatile sampler for taking multiple samples at multiple heights within the product.

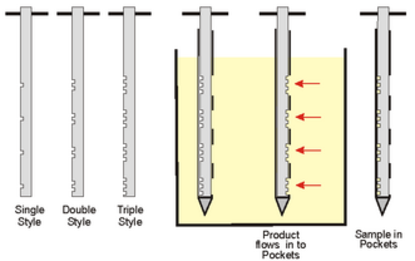

1. Select the correct Inner Rod and fit
it inside the Outer Tube

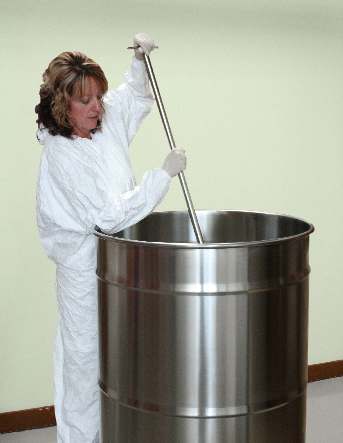

2. Insert the sampler into the product,
turn the handle to expose the pockets
to the product.
3. Turn the handle to the original closed
position, then remove the sampler
from the product.
4. Remove the Inner Rod from the Outer
Tube to expose the samples.
Note: Maximum sample volume is 3ml
per pocket.

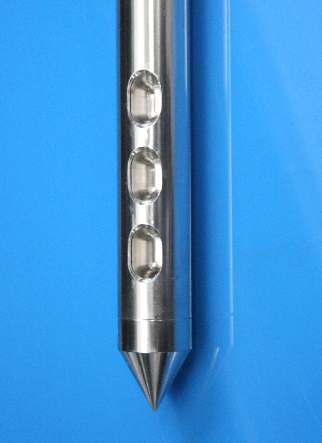

• Multilevel Unit Dose Sampling
• Take one, two or three samples at each sampling height
• 316 stainless steel
Inner Rods
Single Style 675 1245K-XXXX-YY where XXXX is length of outer tube and YY is pocket sample volume
Eg. 675 1245K-600-25 = Inner rod for 600mm sampler, sample volume is 2.5ml and 1 samples required at each window
Double Style 675 1245L-XXXX-YY where XXXX is length of outer tube and YY is pocket sample volume
Eg. 675 1245L-1500-26 = Inner rod for 1500mm sampler, sample volume is 2.6ml and 2 samples required at each window
Triple Style 675 1245M-XXXX-YY where XXXX is length of outer tube and YY is pocket sample volume
Eg. 675 1245M-1000-10 = Inner rod for 1000mm sampler, sample volume is 1.0ml and 3 samples required at each window
Outer Tubes
Part No. Description Length Number of Windows
675 1245A600 Outer Tube - 316ss 600 mm 3
675 1245A1000 Outer Tube - 316ss 1000 mm 3
675 1245A1500 Outer Tube - 316ss 1500 mm 3
NOTE: Outer tubes, and inner rods are ordered seperately
